PCB Milling Machine Wood Carving Mini Engraving Machine PVC Mill Engraver Support

  • $354.62
    Unit price per




PCB Milling Machine CNC 2020B DIY CNC Wood Carving Mini Computer Engraving Machine PVC Mill Engraver Support MACH3 System

Why we choose this CNC Mini Machine?
1. Support MACH3 System.
2. Suitable for engraving PVC PCB wood materials.
3.USB interface, support for both desktop and notebook computers
4. Working table size 200 * 200 * 70mm
5. Equipped with a 300W high-speed spindle
6. With English installation manual, simply operation

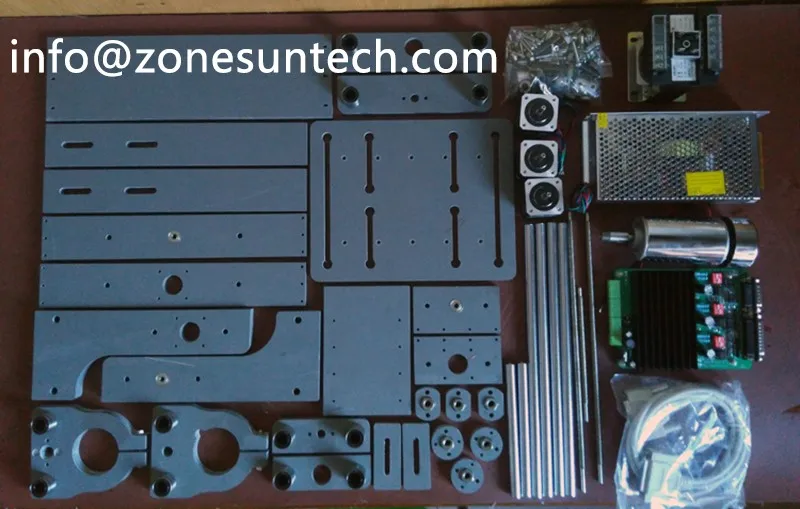

Package introduced
1pcs 2020B engraving machine

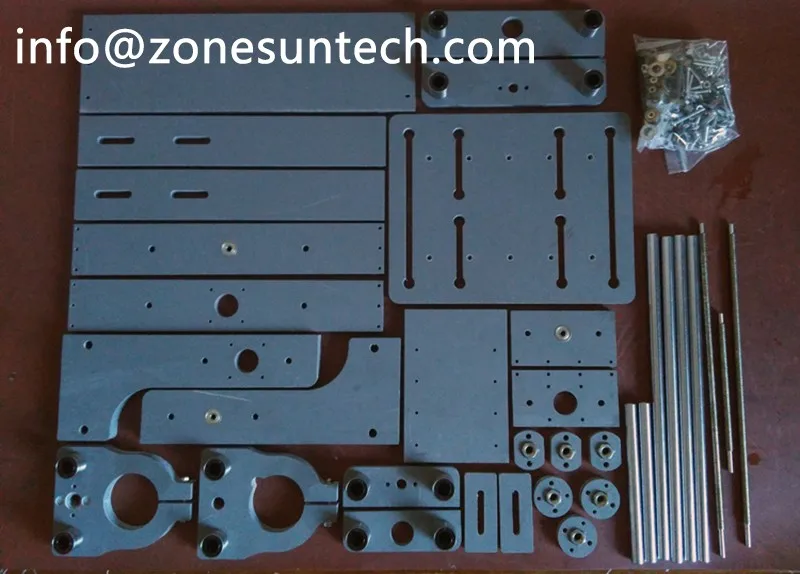

All parts of the mechanical parts, including Spindle motor+Stepper motor+2pcs press plate+Information CD+3 - axis driver board+Parallel port lines+Switching Power Supply+Transformer and rectifier bridge+2pcs milling cutter+SB interface board+Data line
Feature
Spindle motor: 300W
ER11: 3.175mm
Stepper motor: NEMA17 Stepper motor
Current of Driver:1.68A
Lead screw: M8 threaded stainless steel Lead screw triangle
Spindle, 300W high-speed (10,000 rpm)

Parameter
MAX. X axis travel:200mm
MAX. Y axis travel:200 mm
MAX. Z aixs travel:70mm
Size:600*700*500  mm
Resolution ratio:0.0125 mm
Table structure:10mm PCB
MAX. moving speed:4000 mm/min
Control:3000 mm/min
Main shaft power:300w
Main shaft speed:6000-12000 rpm/min
Tool DIA. range:Φ0.3-3.175 mm,4mm,6mm
Voltage:AC 110V/220V (BOTH OK )
Drive model:Stepper
Instruction:G-code
System:Window 2000/XP/7
